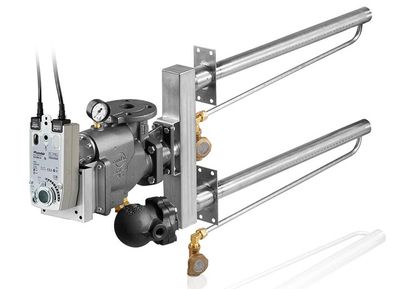

condair esco - live steam humidifier

Additional Information

 The Condair ESCO uses steam from a building’s existing steam network to provide humidification to an air handling unit (AHU) or duct. It conditions the steam to remove condensation and ensures that only dry steam is delivered for humidity control.

It can operate at up to 4bar and provide up to 1,000kg/hr of humidification to an AHU. It incorporates a ceramic rotary disc valve that offers 0-100% modulation, very close control and prevents the possibility of steam leakage when closed.

The Condair ESCO’s steam humidifier patented steam lance has tiny inner nozzles that draw steam only from the centre of the steam lance, where it is at its hottest and driest. This ensures that any condensation that occurs around the cooler outer edges is not introduced to the duct.

Features & benefits

  • Uses a building's existing steam supply
  • High capacity up to 1,000kg/h
  • Operates at up to 4bar
  • Ceramic rotary valve 0-100% modulation
  • Patented steam lance without the need for pre-heating and fast response for humidity

steam humidifier

Condair ESCO Steam Humidifier brochure

Download PDF
