Air Conditioning

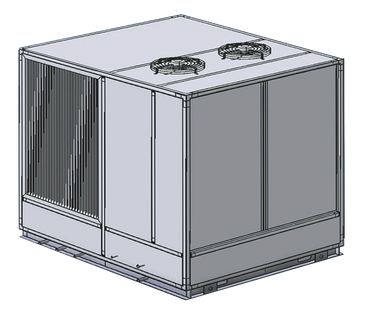

C - 2000
- Airflow (cfm): 2000
- Airflow (lps): 944
- Nominal cooling capacity (ton): 6.4

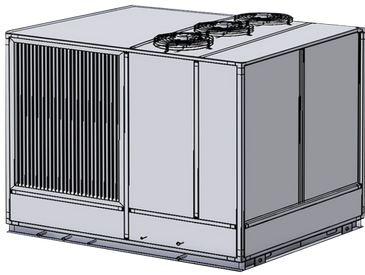

C - 5000
- Airflow (cfm): 5000
- Airflow (lps): 2364
- Nominal cooling capacity (ton): 16

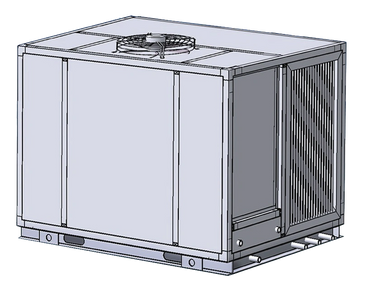

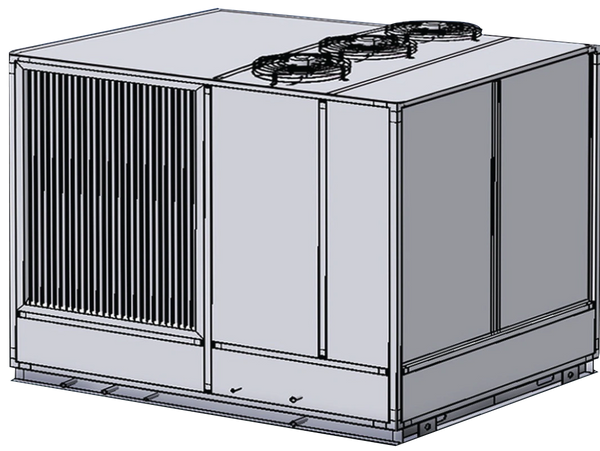

C - 10000
C - 10000
- Airflow (cfm): 10000
- Airflow (lps): 4720
- Nominal cooling capacity (ton): 32
System Overview
Our air conditioning integrates the technology of Indirect-Direct Evaporative Cooling (IDEC), Hydronic and direct Expansion (DX) to provide powerful and economical cooling solutions. The solution is comprised of a packaged air handling and a cooling tower unit which provides 100% fresh air and up to 80% energy saving.
In the first stage, Indirect, 100% fresh air is cooled sensibly by passing over a highly efficient fin & tube heat exchanger fed by the cooling tower. Then, the sensibly cooled air passes over a wetted pad where it cools down adiabatically, Direct evaporative cooling.
The system can also be supplemented with a DX or chilled water system to allow for more effective climatic control and performance where required. The total engineered unitary solution series by Novel ensures reliable performance, high efficiency and substantial energy savings
